Vacuum Degasser

Vacuum Degasser 1
Vacuum Degasser 1

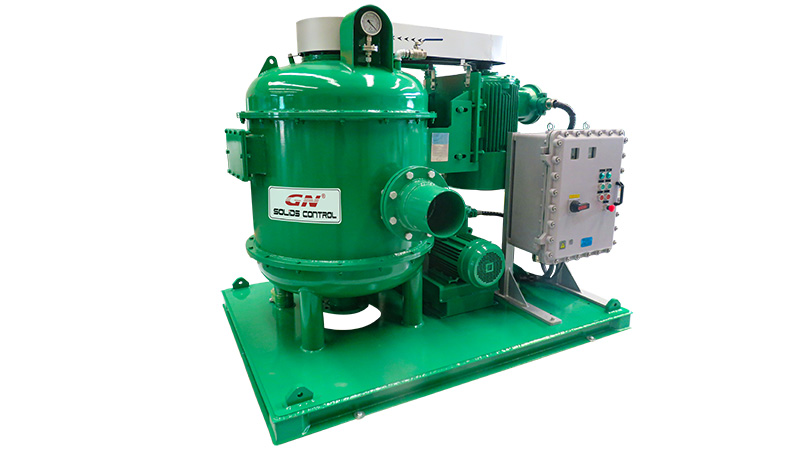

Vacuum Degasser 2
Vacuum Degasser 3
A vacuum degasser is a crucial piece of equipment used in the drilling industry to remove unwanted gas from drilling fluids.
  • A vacuum degasser is a crucial piece of equipment used in the drilling industry to remove unwanted gas from drilling fluids. It is an essential component of a drilling rig's circulating system, ensuring the safety of personnel and equipment. The vacuum degasser works by creating a low-pressure area inside a tank through which the drilling fluid is circulated. This low-pressure area allows gas to escape from the fluid, which is then trapped and collected by the degasser.

    Vacuum Degasser 2

    Vacuum Degasser Technical Parameters

    ModelGNZCQ270BGNZCQ360B
    Main diameter 920mm
    Capacity  ≤270 m3/h (1188GPM) ≤360 m3/h (1584GPM)
    Vacuum Degree -0.02~-0.04 Mpa
    Handling Efficiency ≥95%
    Main Motor Power 22Kw (30HP) 37Kw (50HP)
    Pump Motor Power 7.5Kw (10 HP)
    Rotation Speed 700RPM 860RPM
    EX Standard ExdIIBt4 / IEC EX/ ATEX
    Suction Line Size 6 Inch
    Output Size 8 Inch
    Weight 1730kg 1870kg
    Dimension: L×W×H 2100×1605×1729mm
    The above specification and parameters for reference only.

    The vacuum degasser eliminates harmful gases such as hydrogen sulfide, methane, and carbon dioxide from the drilling fluids, avoiding exposure to personnel and equipment. These gases can cause severe health problems and equipment damage, so it's essential to remove them before returning the fluid to the wellbore. Additionally, the vacuum degasser is effective in removing small bubbles from the drilling fluid, which can improve the overall efficiency of the drilling process.

    GN Solids Control is a leading manufacturer of high-quality vacuum degassers designed to meet the demanding needs of the drilling industry. The GN Solids Control vacuum degasser is constructed from durable materials and features a compact design that allows it to be easily integrated into a variety of drilling rigs. Moreover, it is simple to operate and maintain, making it an ideal choice for drilling operations of all sizes.

    Vacuum Degasser 3

    The GN Solids Control vacuum degasser comes in various sizes, making it suitable for both small and large-scale drilling operations. The smaller-sized degassers are ideal for less demanding drilling operations, while the larger ones are perfect for extreme drilling conditions. The vacuum degasser is also available in various models, each designed to cater to specific drilling needs.

    In conclusion, a vacuum degasser is an indispensable component in the drilling industry, and its importance cannot be overstated. It is used to remove unwanted gases from drilling fluids, which can be harmful to both personnel and equipment. The GN Solids Control vacuum degasser is a top-of-the-line piece of equipment that is designed to meet the demanding needs of the drilling industry, making it an excellent choice for drilling operations of all sizes.
