HDD Mud Recycling System

1-HDD-Mud-Recycling-18
1-HDD-Mud-Recycling-18
2-HDD-Mud-Recycling-23
3-HDD-Mud-Recycling-36
4-HDD-Mud-Recycling-48
GN Solids Control is a leading manufacturer of Mud Recycling Systems for Horizontal Directional Drilling (HDD) and Coal Bed Methane (CBM) drilling rigs. Our mud recycling systems have been successfully deployed in numerous countries, particularly in Australia, Indonesia, and India. With the support of GN Solids Australia branch, GN Solids Houston branch and our partners in Australia, we provide comprehensive services and spare parts from our locations in Brisbane, Houston, and Beijing.
  • GN Solids Control is a leading manufacturer of Mud Recycling Systems for Horizontal Directional Drilling (HDD) and Coal Bed Methane (CBM) drilling rigs. Our mud recycling systems have been successfully deployed in numerous countries, particularly in Australia, Indonesia, and India. With the support of GN Solids Australia branch, GN Solids Houston branch and our partners in Australia, we provide comprehensive services and spare parts from our locations in Brisbane, Houston, and Beijing.

    1 HDD Mud Recycling 1

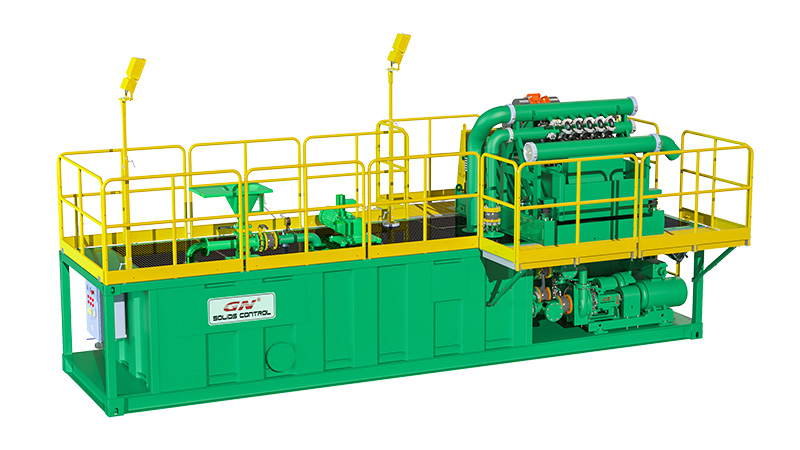

    G Series Self-Contained Mud Recycling System:

    TypeSelf-Contained Mud Recycling System
    Function Mud Recycling, Mud Mixing, and Mud Storage
    Model GNMS-200B GNMS-400B GNMS-600B GNMS-800B
    Capacity 200GPM 400GPM 600GPM 800GPM
    45m³/h 90m³/h 136m³/h 180m³/h
    Separation Shaker and Desilter, 2 Stage 3 Stage
    Cut Point 20 Microns
    Power 24.4KW 44.8KW 70KW 147KW
    Volume 5m³ 8.5m³ 15m³ 19.5m³
    Please note the above specifications and parameters are for reference only

    3 HDD Mud Recycling 3

    Features of GN HDD/CBM Mud Recycling Equipment:

    • Complete line of Mud Systems: We offer a range of self-contained mud recycling systems with various capacities to suit different requirements. GNMS-200GPM / GNMS-350GPM / GNMS-500 GPM / GNMS-1000GPM / GN1500 GPM.
    • Cost-effective Equipment Integration: Our drilling mud equipment is designed to provide a complete solution from a single source, manufactured at GN Solids Control Factory.
    • Fast-Moving Compact System: Our systems are designed with a small footprint and feature fast connections for removable parts. Most parts are fixed during transportation to comply with transport regulations.
    • Assured Customer Service: Our experienced engineers can provide installation and training support for both customers and their engineers.
    • Mud Tanks Flexible Options: We offer skid-mounted, trailer-mounted, or hydraulic jack-up mud recycling tanks to provide flexibility according to your preferences.

    4 HDD Mud Recycling 4

    Configuration of GN HDD/CBM Mud Recycling Equipment:

    1.Mud Recycling Tank

    The mud recycling tank is equipped with various attachments, including walkways, handrails, and mud clean gates, to facilitate easy access and efficient operation.

    2.Shale Shaker:

    The shale shaker serves as the primary stage of mud recycling, effectively removing solids larger than 100 microns from the drilling mud.

    3.Desander:

    As the secondary phase of mud cleaning, the desander is responsible for separating solids larger than 50 microns, contributing to enhanced mud quality.

    4.Desilter:

    The desilter acts as the third phase of mud recycling, specifically designed to separate solids larger than 20 microns, further refining the mud composition.

    5.Decanter Centrifuges:

    In the fourth phase of mud recycling, decanter centrifuges play a crucial role in separating solids within the range of 2 to 5 microns, ensuring the highest level of purification.

    6.Mud Agitators, Mud Guns, Mud Mixing Pumps, and Drilling Mud Transfer Pumps:

    These essential components are integrated into the mud recycling unit to facilitate efficient operation, including maintaining proper mud consistency, effective mixing, and seamless transfer of drilling mud.

    7.Customized Solutions:

    In addition to our standard drilling mud recycling systems, we offer tailored solutions that cater to the specific requirements and applications of drilling contractors, ensuring optimal performance and productivity.
