Large Banana Vibrating Screen

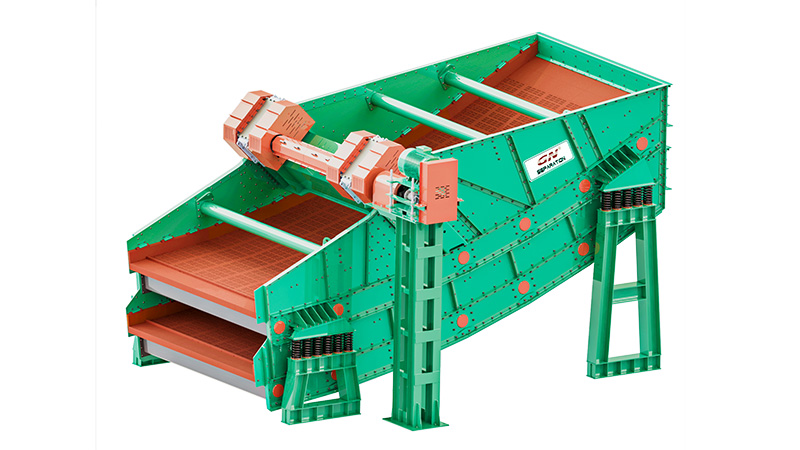

Large Banana Vibrating Screen 1
Large Banana Vibrating Screen 1
Large Banana Vibrating Screen 2
Large Banana Vibrating Screen 3
The Large Banana Vibrating Screen is a specialised device widely employed in industries such as mining , chemical, paper, and pharmaceutical.
  • The Large Banana Vibrating Screen is a specialised device widely employed in industries such as mining, chemical, paper, and pharmaceutical. Its primary function is to effectively separate wet and sticky materials. This equipment utilises a unique screen mesh structure and operates on the principles of vibration mechanics. By integrating these elements, it achieves effective classification of materials into different particle sizes, ensuring that production and processing requirements are met with precision and accuracy.

    Large Banana Vibrating Screen (Single Deck)

    ModelGNBS2461GNBS3061GNBS3661GNBS3673GNBS4361GNBS4373
    Screen Area m2 14.64 18.3 21.96 26.28 26.23 31.39
    Vibration Direction Angle° 45
    Vibration Frequency Hz 12.5~16
    Power kW 30 30 45 45 55 55
    Double Amplitude mm 8~12
    Mesh Size mm 6~100
    Capacity t/h 110~440 200~550 260~700 300~800 350~900 350~950
    Installation Inclination° 5~34
    Remark
    1. The above parameters are for reference only and can be adjusted according to the customer's situation. The final quotation and technical agreement shall prevail.
    2. The handling capacity of materials with the same size and different working conditions varies greatly. Please consult GN company for details.

    Large Banana Vibrating Screen 3

    Large Banana Vibrating Screen (Double Deck)

    ModelGNBD2461GNBD3061GNBD3661GNBD4385
    Screen Area m2 14.64×2 18.3×2 21.96×2 36.55×2
    Vibration Direction Angle° 45
    Vibration Frequency Hz 12.5~16
    Power kW 30 55 55 90
    Double Amplitude mm 8~12
    Mesh Size mm 6~100
    Capacity t/h 200~900 300~1300 400~1500 600~1800
    Installation Inclination° 5~34
    Remark
    1. The above parameters are for reference only and can be adjusted according to the customer's situation. The final quotation and technical agreement shall prevail.
    2. The handling capacity of materials with the same size and different working conditions varies greatly. Please consult GN company for details.

    Large Banana Vibrating Screen 4

    Large Banana Vibrating Screen Features

    • The Large Banana Vibrating Screen comprises a vibration motor, screen body, screen mesh, and springs. The vibration motor generates the necessary force for efficient material screening by causing the screen body and mesh to vibrate. Made of elastic materials, the screen mesh exhibits excellent wear resistance and anti-adhesive properties, adapting well to high-intensity screening operations.
    • With high screening efficiency, large processing capacity, and strong reliability, the Large Banana Vibrating Screen finds wide application in industries such as food, chemical, paper, and pharmaceutical. It can be customised to meet diverse screening demands, accommodating various material characteristics and production requirements. Moreover, it can be seamlessly integrated with other equipment, such as conveyors and crushers, to establish automated production lines.
    • This commonly used material screening equipment is particularly suitable for the mining and metallurgical industries, accurately separating and efficiently handling large quantities of materials. It proves valuable in applications such as large mines, steel, coal, silicon carbide, chemical, and food industries.
    • Named for its screen mesh shape resembling a curved bulge like a banana, the Large Banana Vibrating Screen employs an exciter to generate vibration force. This innovative design accelerates and layers the materials at the curved protrusions inside the screen, facilitating the discharge of larger-sized materials through the lower outlet. Simultaneously, smaller materials pass through the screen holes and exit via the side outlet. This design significantly enhances screening efficiency, reduces equipment footprint, energy consumption, and maintenance requirements, while alleviating the workload of operators.
    • Offering advantages such as high screening efficiency, large and accurate screening capacity, reasonable design, small footprint, simple structure, low noise, and easy maintenance, the Large Banana Vibrating Screen not only enhances production efficiency but also contributes to minimising its impact on the environment.
