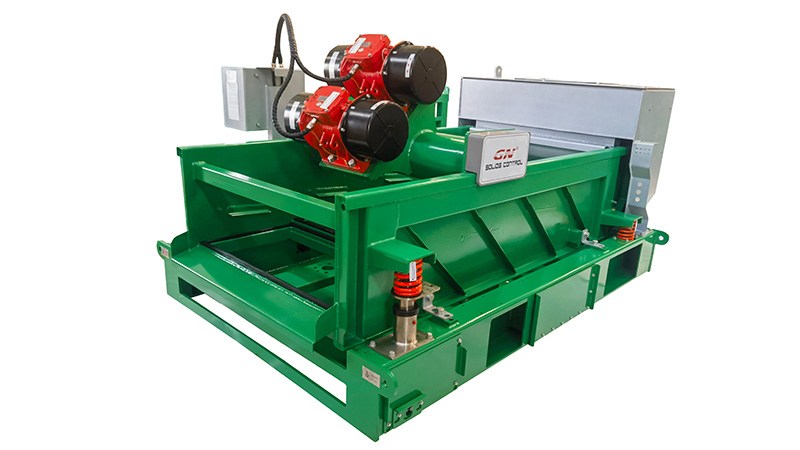

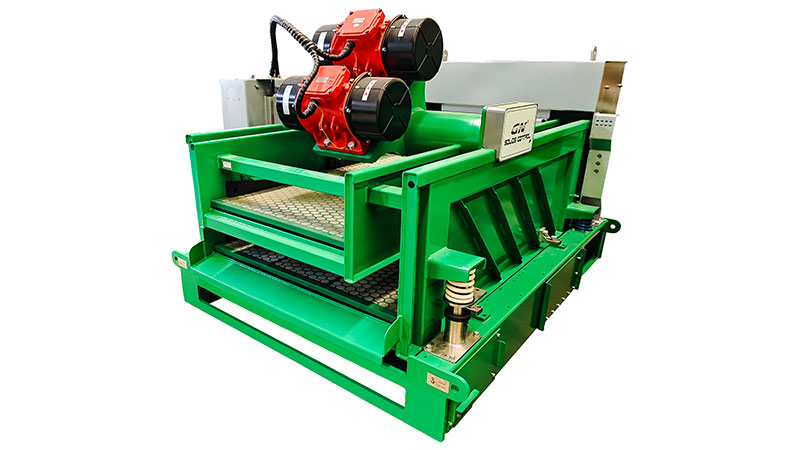

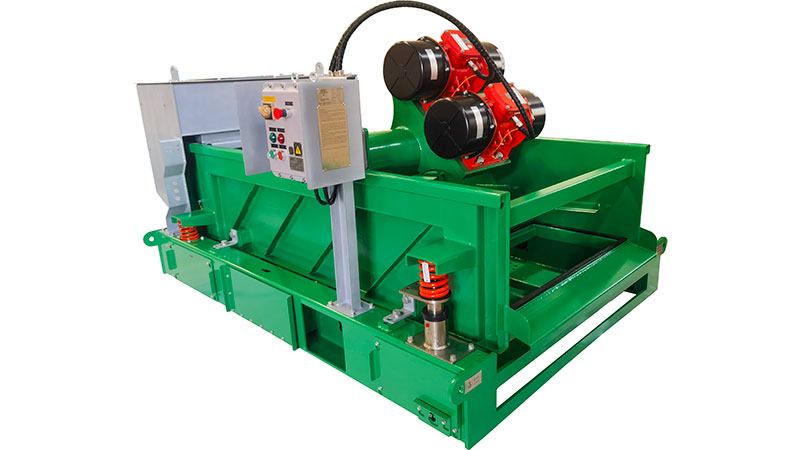

Drilling Fluids Shale Shaker

A drilling fluids shale shaker is a vital piece of equipment in the drilling industry, used to remove solids from drilling fluid.

Request a Quote

DOWNLOAD BROCHURE

• A drilling fluids shale shaker is a vital piece of equipment in the drilling industry, used to remove solids from drilling fluid. During the drilling process, the drilling fluid or mud is circulated downhole through the drill bit and up the annulus, carrying drill cuttings and other debris. The drilling fluids shale shaker is a crucial component that separates the solids from the fluid, ensuring the quality of the drilling fluid and the efficiency of the drilling process.



  Shale Shaker Technical Parameters

  Model	GNZS752K	GNZS594K	GNZS595K	GNZS596K
  Vibration Model	Linear Motion	Linear Motion	Linear Motion	Linear Motion
  Reference Capacity	45m3/h(200GPM)	140m3/h(616GPM)	175m3/h(770GPM)	140m3/h(616GPM)
  Vibration Motor	2×1.5kW	2×1.94kW	2×1.94kW	2×2.2kW
  Screen Qty	2pcs	4pcs	5pcs	6pcs
  Screen area	1.35m2	2.73m2	3.41m2	Top Deck:1.36m2 Bottom Deck:2.73m2
  Adjust G Force	≤7.5G	≤7.5G	≤7.5G	≤7.5G
  Vibration Amplitude	4.14～5.96mm	4.14～5.96mm	4.14～5.96mm	4.14～5.96mm
  Deck Angle Range	+2°	-1～+5°(Adjustable)	-1～+5°(Adjustable)	-1～+5°(Adjustable)
  Feeding Type	Weir Feeder	Weir Feeder	Weir Feeder	Weir Feeder
  Weir Height	773mm	958mm	958mm	1038mm
  Weight	1214Kg	2138Kg	2337Kg	2428Kg
  L×W×H(mm)	2303×1610×1356	2970×1995×1619	3265×1995×1919	2970×1995×1669
  Remarks	Above capacity only for reference, actual capacity will be various as per screen API No. and mud conditions
  The above specification and parameters for reference only.

  The shale shaker uses a vibrating screen to separate the solids from the fluid. The drilling fluids shale shaker offered by GN Solids Control is a high-quality and reliable piece of equipment that can handle high volumes of drilling fluid and effectively remove solids from the fluid. The shale shaker uses a variety of screens to ensure that the solids are separated from the fluid efficiently, leaving the drilling fluid in top condition for the drilling process.

  The device is easy to operate and maintain, making it an ideal choice for drilling companies of all sizes. The drilling fluids shale shaker is built to withstand the harsh conditions of the drilling industry and can perform reliably even in the toughest environments.



  The drilling fluids shale shaker offered by GN Solids Control is designed with a variety of features that make it a top choice for drilling companies. It has an adjustable deck angle, which allows for fine-tuning of the shaker performance based on the specific drilling conditions. Additionally, the device has a simple and reliable design that ensures easy maintenance and repair, reducing downtime and extending the life of the equipment.

  Overall, the drilling fluids shale shaker is an essential piece of equipment for any drilling operation. It helps to maintain the quality of the drilling fluid, which is critical for the success of the drilling process. With the high-quality shale shaker offered by GN Solids Control, drilling companies can be confident in their ability to remove solids from their drilling fluid efficiently and effectively.

  Features & Benefits of GN Linear Motion Shale Shaker:

  • The entire shaker deck undergoes heat treatment to relieve welding stress, enabling it to withstand high G force.
  • The shaker screen is installed with a mechanical ratchet wrench gear for quick tightening, facilitating easy disassembly and ensuring long-lasting durability.
  • The wedge blocks for tightening the screen mesh are made of nylon, providing high temperature resistance, corrosion resistance, and wear resistance.
  • Vibration motor: Italian OLI brand.
  • Polyurethane material is used for sealing between the shale shaker and screen, ensuring a long service life and easy replacement.
  • The supporting rubber strips for the bottom frame of the vibration screen are made of stainless steel, offering strong corrosion resistance and a long service life.
  • The electrical control box is made of aluminum alloy/stainless steel explosion-proof material, ensuring good sealing and strong corrosion resistance.
  • The pre-tensioned shaker screen allows for convenient and quick disassembly and replacement.
  • The mud outlet can be switched between bottom and side outlets, accommodating flexible installation on site.
  • The angle of the shaker deck can be mechanically adjusted while working at both ends , adapting to different processing capacities.
