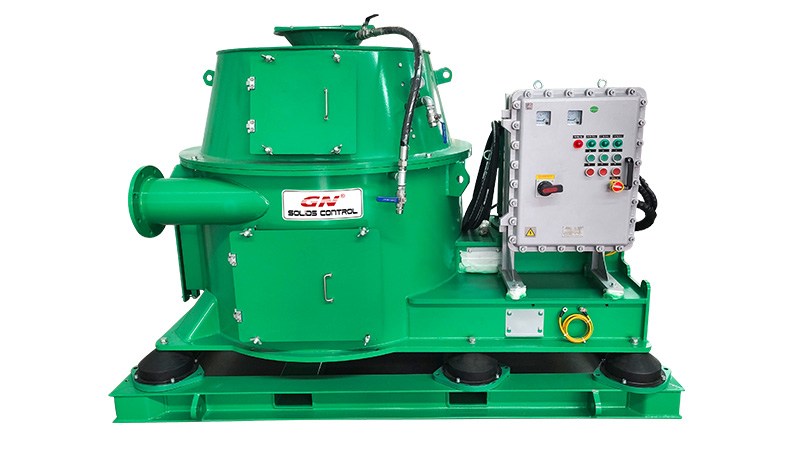

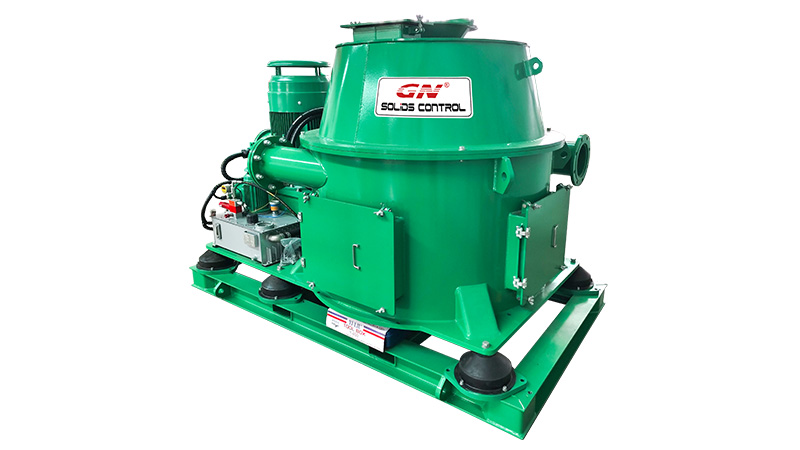

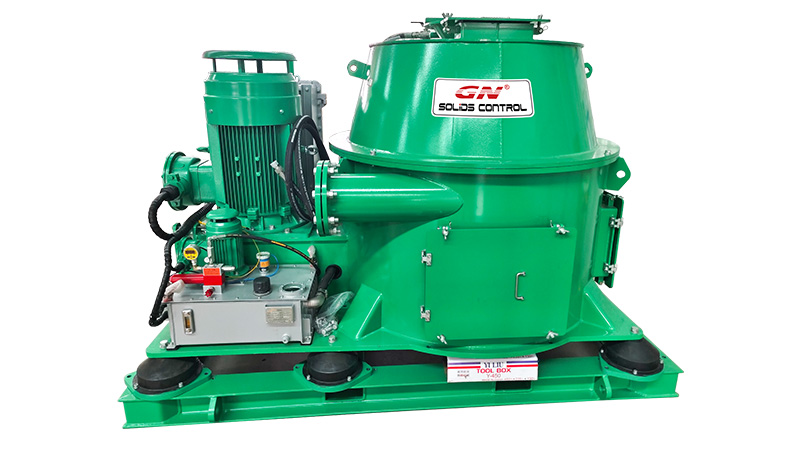

Vertical Cutting Dryer

930D1
930D1
930D2
930D4
Vertical cutting dryer is an important equipment in the oil drilling industry, used to process the large amount of drilling cuttings generated in the drilling process.
Request a Quote
DOWNLOAD BROCHURE
Description
Parameter

  • Vertical cutting dryer is an important equipment in the oil drilling industry, used to process the large amount of drilling cuttings generated in the drilling process. The vertical cutting dryer can efficiently separate the drilling waste from the drilling fluid and dry it for recycling, thereby improving the processing efficiency and cost-effectiveness of the drilling fluid. In addition, the drilling waste dryer can also reduce the pollution of the drilling fluid to the underground environment and protect the environment.

    930D2

    GN Vertical Cuttings Dryer Specifications

    ModelGNCD930G-GPGNCD930G-VFD
    Capacity 30~50 Tons/H
    Drying Efficiency OOC ≤ 5%
    Screen Max Diameter 930mm
    Screen Opening 0.25/0.35/0.5mm
    Rotation Speed 900RPM 0~900RPM
    G Force 420 G
    Oil Tank Capacity 48L
    Air Knife Input Pressure 0.41Mpa
    Air Knife Input Capacity 4.8m³/m
    Main Motor 55Kw (75HP)
    Back Drive Motor N/A 11KW(15HP)
    Oil Pump 0.55Kw(0.75HP)
    Flushing Pump Power 4Kw(5.5HP)
    Ex Standard ExdIIBt4 / IEC EX/ ATEX
    Electric Cabinet Exd Positive Pressurized
    Weight 4800Kg 4900Kg
    Dimension 2685 X 1290 X 1723mm
    The above specification and parameters for reference only.

    930D4

    GN Vertical Cuttings Dryer Features:

    • Efficient processing: GN Vertical cutting dryer uses high-speed rotation and centrifugal separation technology to quickly and effectively process solid waste and liquid from drilling fluids, reducing waste generation and lowering processing costs.
    • Environmentally friendly and energy-efficient: GN Vertical cutting dryer can recycle and reuse drilling fluids, reducing environmental pollution and resource waste, while also reducing energy consumption for waste treatment.
    • Strong adaptability: The rotation speed and filter screen size of the GN Vertical cutting dryer can be adjusted according to the characteristics and processing needs of the drilling fluid, making it adaptable and able to handle different types of drilling fluid and waste.
    • Easy operation: GN Vertical cutting dryer adopts an automated control system, which is easy to operate and can achieve remote monitoring and operation, improving work efficiency and safety.
    • High G-Force: The drum of the cutting dryer is equipped with a high-speed centrifuge mechanism that generates a significant centrifugal force. This high G-force helps to accelerate the separation of solids from the drilling fluid.
    • Adjustable Speed option: The cutting dryer typically has an adjustable rotational speed for the drum. This feature allows operators to optimize the separation efficiency based on the specific drilling conditions and the characteristics of the cuttings. helps to maintain the quality and performance of the drilling fluid, leading to improved drilling efficiency.
