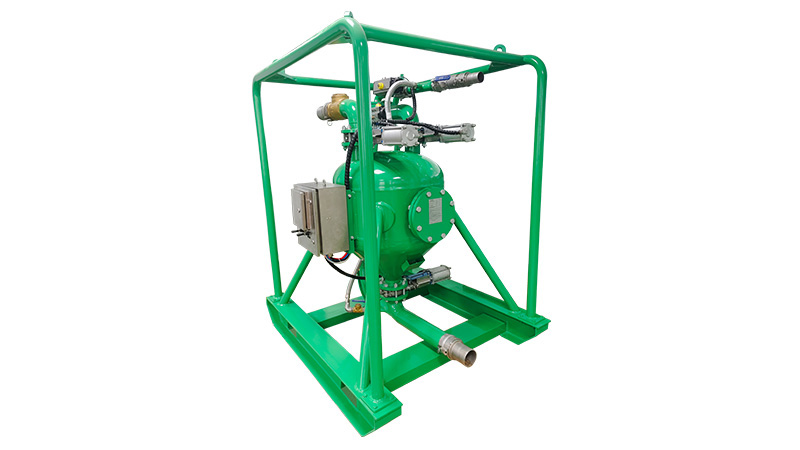

GNSP-40_Solids_Vacuum_Pump_4
Solids vacuum pump, also named as solids transfer pump. It is a type of pneumatic pump that sucks the material with vacuum produced by air operation, and then converts to positive pressure for discharging. Most of the solids, sludge and liquid could be transferred by using this pump.
Request a Quote
DOWNLOAD BROCHURE
Description
Parameter

  • Solids vacuum pump, also named as solids transfer pump. It is a type of pneumatic pump that sucks the material with vacuum produced by air operation, and then converts to positive pressure for discharging. Most of the solids, sludge and liquid could be transferred by using this pump. With special structure design of no rotating parts in the cavity, it can be used at tough environmental with high working performance and less maintenance. The pump can transfer material with high gravity and high density, solids content max.

    up to 80%. It has following features: the high efficiency venturi device can produce vacuum up to 25 inch HG (Mercury Column). This is equivalent to vacuum of 85Kpa to suck the material. The pump structure is simple and compact, almost none of wear parts. The transfer distance is up to 500-1000 meters.

    GNSP 40 Solids Vacuum Pump 3

    GN Sludge Vacuum Pump Parameter

    ModelGNSP-40BGNSP-20BGNSP-10B
    Max Capacity(m³/h) 40m³/h 20m³/h 10m³/h
    Inlet/Outlet Size(Inch) 4”(114mm)
    		 4”(114mm) 3”(89mm)
    Vacuum Degree 85Kpa/25 inch HG (Mercury Column)
    Max Suction Distance(m) 50m
    Max Discharge Distance(m) 1000m 500m
    Max Solids Content 80%
    Max Solids Size(mm) 75mm 50mm
    Pressure Request 550Kpa-785Kpa (80-114PSI) 550Kpa-690Kpa (80-100PSI)
    Air Demand 17m³/min (600CFM) 8m³/min(280CFM) 4.3 m³/min(150CFM)
    Weight(kg) 892kg 386kg 320kg
    Dimension:L×W×H(mm) 1690×1468×1983mm 1421×900×1448mm 1283×800×1370mm
    The above specification and parameters for reference only.

    GNSP 20 Solids Vacuum Pump 2

    Solids Vacuum Pump Features:

    • High efficiency and energy-saving: GN vacuum pump employs advanced vacuum technology, achieving efficient material transportation with low power consumption. It can rapidly and effectively transport materials to the desired location, improving production efficiency while reducing energy consumption.
    • Versatile applications: Vacuum pump is suitable for transporting various materials, including powders, granules, and suspensions. It finds applications in multiple industries such as chemical, food processing, pharmaceuticals, and environmental protection, catering to the material transportation needs of different sectors.
    • Safety and reliability: Built with high-quality materials and advanced manufacturing processes, GN vacuum pump exhibits stable performance and reliable operation. It ensures the safety of material transportation, minimizing accidents and losses.
    • Flexibility and adjustability: vacuum pump offers flexible conveying capabilities and adjustable parameters. Users can customize the conveying speed, negative pressure level, and other parameters to meet the requirements of different material transportation tasks.
    • Replaceable wear parts: GN Vacuum pumps incorporate replaceable wear parts such as valve, gaskets, and filters. These parts are designed to be easily replaced when they wear out or become damaged. This reduces downtime during maintenance and allows for quick restoration of the pump's functionality.
