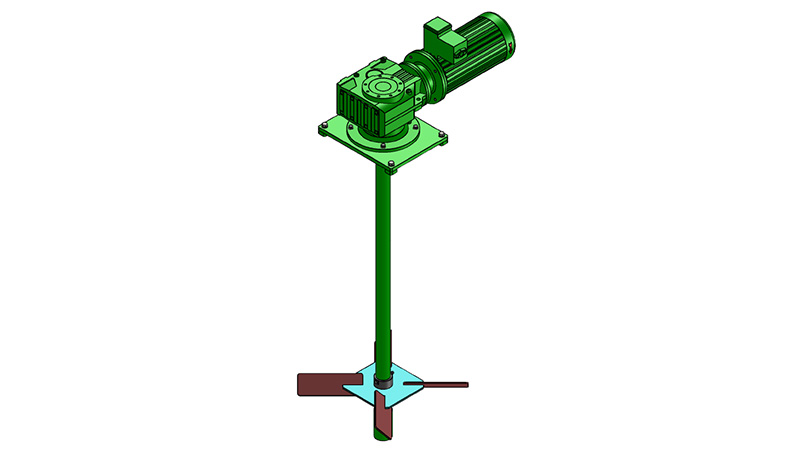

Mud Agitator
Mud agitators are a critical component of drilling mud systems used in the oil and gas industry.
-
Mud agitators are a critical component of drilling mud systems used in the oil and gas industry. They are designed to keep the solids in suspension, ensuring that they do not settle at the bottom of the tank, which can cause blockages and other issues. GN Solids Control is a leading manufacturer of mud agitators, offering a range of products designed to meet the unique needs of various drilling operations.
Mud Agitator Technical Parameters
Model Motor (Kw) Speed (RPM) Impeller Size (mm) Ratio Weight (Kg) Dimension(mm) GNJBQ030G 3 60/72RPM
(50HZ/60HZ)700 25:1 122 794*440*472.5 GNJBQ055G 5.5 850 197 960*540*598 GNJBQ075G 7.5 950 247 1065*540*616 GNJBQ075GD 850+700 GNJBQ110G 11 1050 291 1187*540*621 GNJBQ110GD 950+700 GNJBQ150G 15 1100 393 1287*640*683 GNJBQ150GD 1050+850 GNJBQ185G 18.5 1200 445 1307*640*698 GNJBQ185GD 1100+950 GNJBQ220G 22 1200 516 1307*640*698 GNJBQ220GD 1100+950 Remarks Shaft and impeller will be provided by GN, but not including in the weight & dimension. The above specification and parameters for reference only.
Mud agitators work by mixing the drilling mud, which is a mixture of water, mud, and other additives, to ensure that it is properly homogenized. This is necessary to prevent the solids from settling and to ensure that the drilling mud is consistent throughout the system. The mud agitator is typically installed in the mud tank, where it rotates at a high speed, creating a vortex that keeps the solids in suspension.
GN Solids Control's mud agitators are designed to be highly effective, durable, and reliable, even in the most challenging drilling environments. They are available in a range of sizes and configurations, allowing drilling operators to choose the product that best fits their needs. GN Solids Control also offers customized solutions for clients with specific needs.
One of the key features of GN Solids Control's mud agitators is their high-quality construction. They are made from high-quality materials, including stainless steel, to ensure that they are resistant to corrosion and other forms of wear and tear. The impeller blades are also designed to be highly efficient, ensuring that the mud is properly mixed and circulated throughout the system.
Another important feature of GN Solids Control's mud agitators is their ease of use. They are designed to be simple to install, operate, and maintain, with minimal downtime required for maintenance or repairs. This is critical in the oil and gas industry, where downtime can be extremely costly.
In addition to mud agitators, GN Solids Control also offers a range of other products for drilling mud systems, including shale shakers, mud cleaners, and centrifuges. These products are designed to work together seamlessly, ensuring that drilling operations run smoothly and efficiently.
Overall, mud agitators are a critical component of drilling mud systems, helping to ensure that drilling operations are efficient, safe, and effective. GN Solids Control's mud agitators are designed to be highly effective, durable, and reliable, making them an excellent choice for drilling operators looking for high-quality equipment.
