Civil Construction Mud Treatment

Civil Construction Mud Treatment

GN Solids Australia specialises in providing mud solids control equipment and complete mud cleaning package systems for various civil construction applications, including Horizontal Directional Drilling (HDD), Hydrovac Slurry Dewatering, Bored Piling, and Tunnel Boring Machine (TBM) and water well drilling.

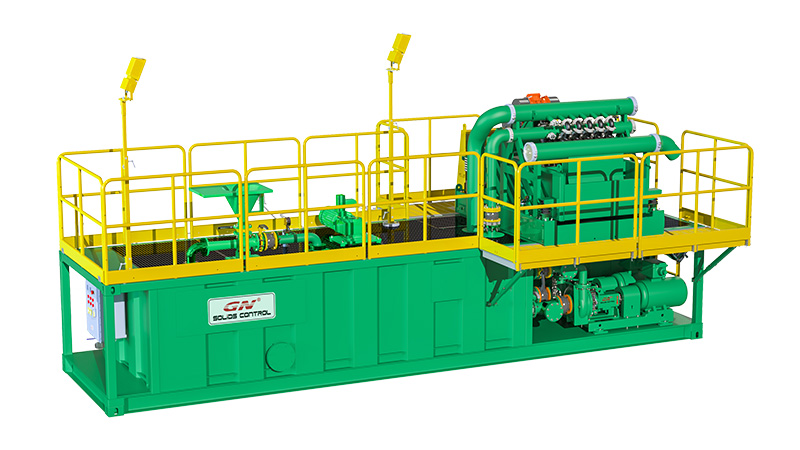

HDD Mud Cleaning System

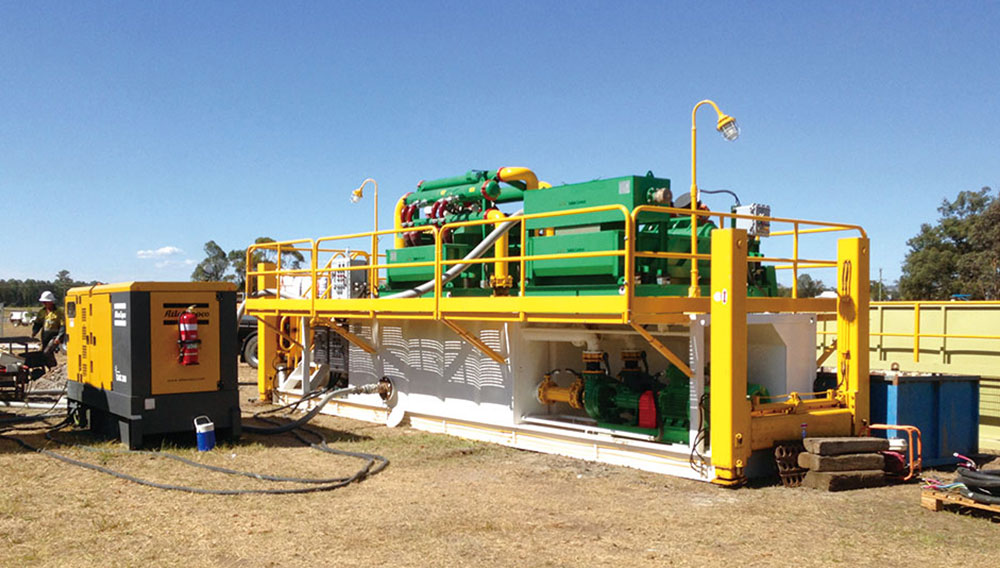

1 HDD Mud Recycling 1 2 HDD Mud Recycling 2

Hydrovac Slurry Dewatering

3B Hydrovac Slurry Treatment 2 3A Hydrovac Slurry Treatment 1

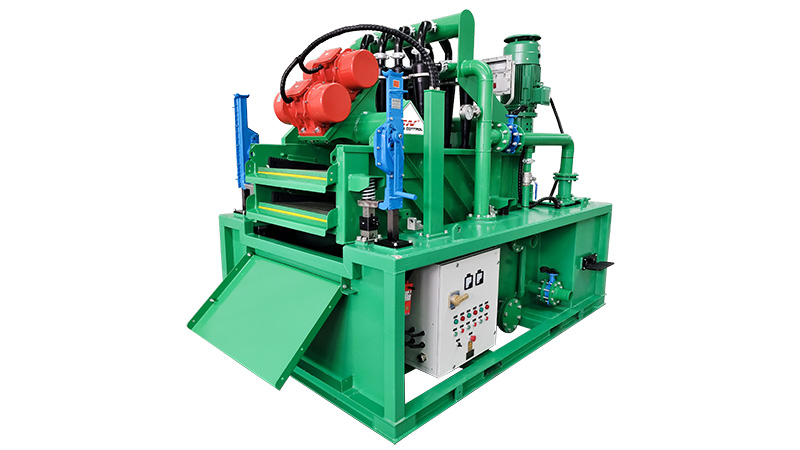

Desander Plant for HDD or Bored Piling

4 desander plant2 5 desander plant21

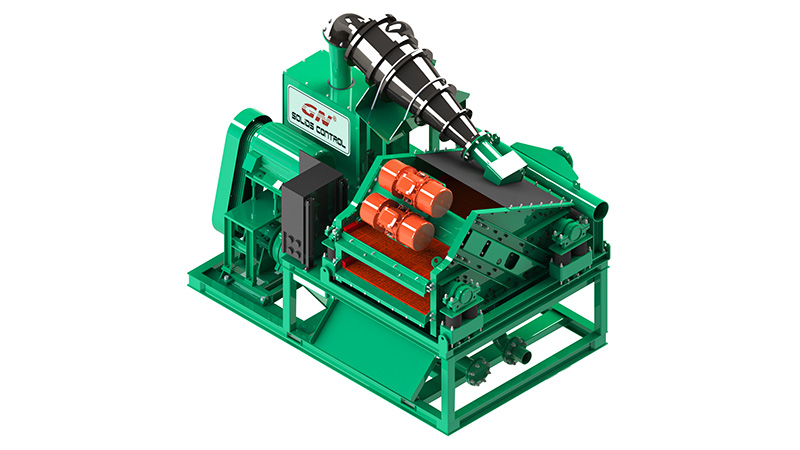

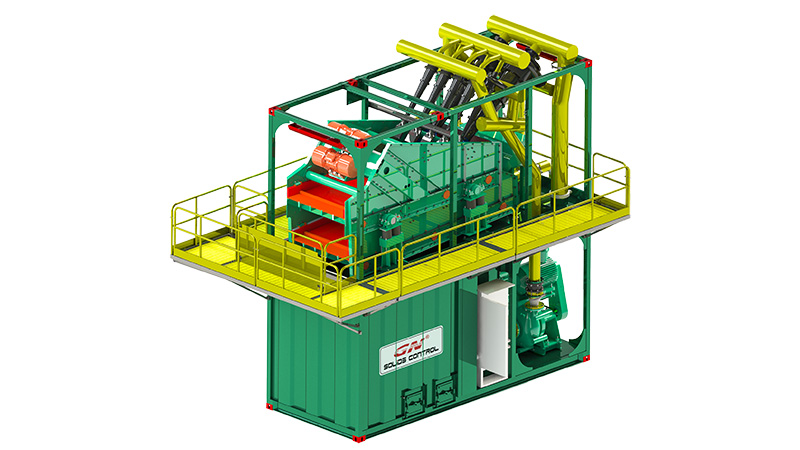

TBM Slurry Separation Plant

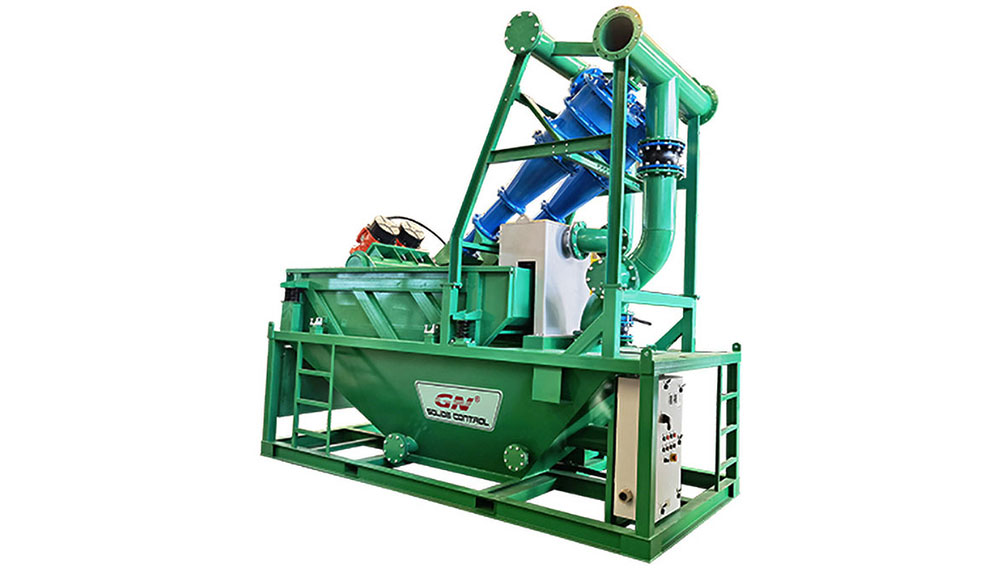

6 TBM Slurry Treatment 1 7 TBM Slurry Treatment 2

Centrifuge and Pumps

Decanter CentrifugeSolids Vacuum PumpMud Mixing pump
8 Dewatering Centrifuge 9 Solids Vacuum Pump 10 Mud Mixing Hopper

Civil Construction Mud Treatment Application

GN designs and manufactures a comprehensive range of equipment for civil construction mud treatment, covering all typical four stages of solids control:

  • Shale shaker or vibrating screen for the first stage solids control, typically up to 100 microns.
  • Desander for the second stage solids control with a 50 microns cut point.
  • Desilter for the third stage solids control with a 20 microns cut point.
  • Decanter centrifuge for the fourth stage solids control with a 2 microns cut point. With the implementation of chemically enhanced technology, GN dewatering centrifuge is capable of achieving a near 0 cut point, allowing for the discharge of clean water for industry reuse.

GN Solids not only provide individual equipment but also offers customised mud cleaning systems tailored to the civil construction in the Australia market.
